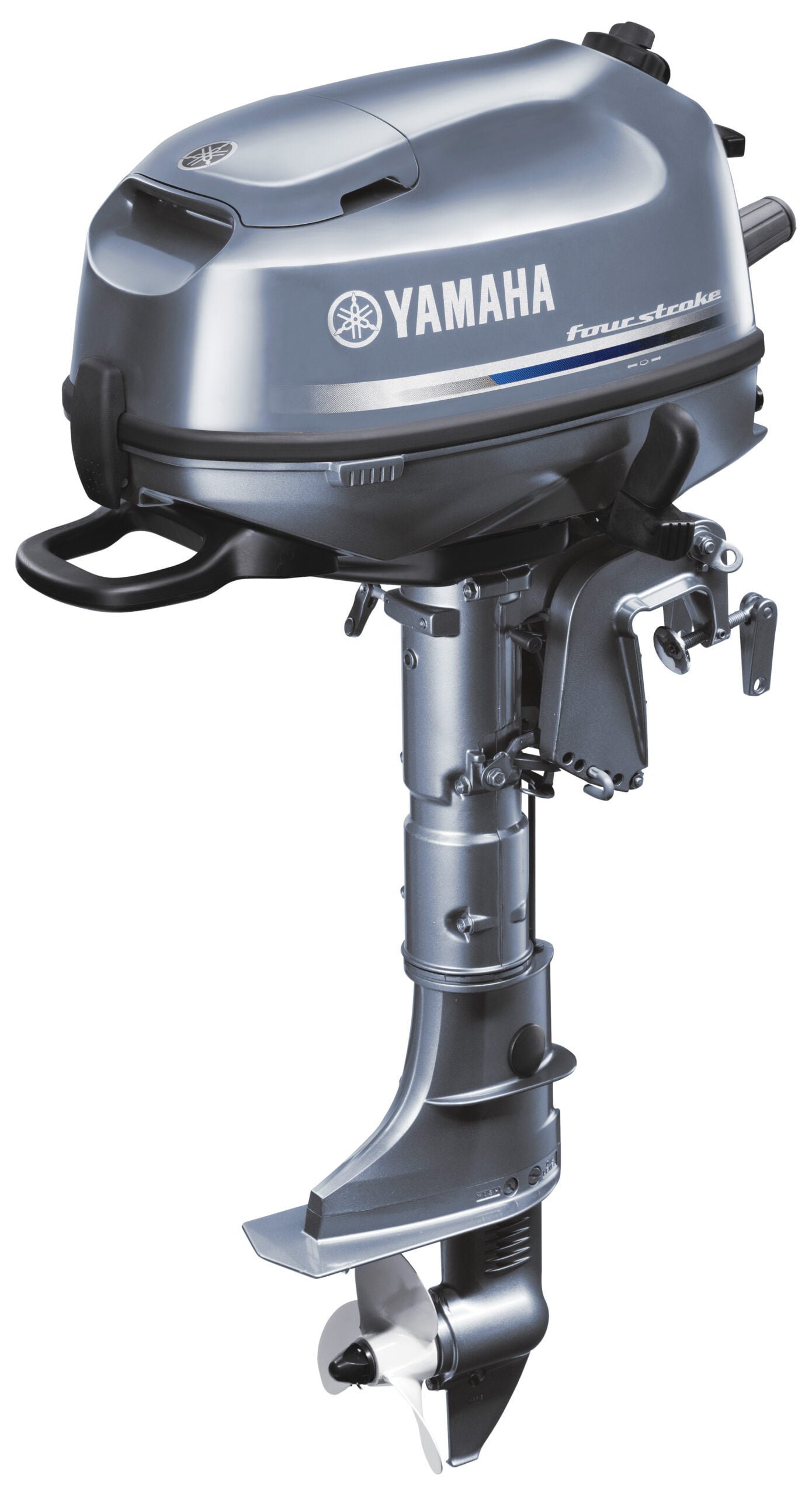

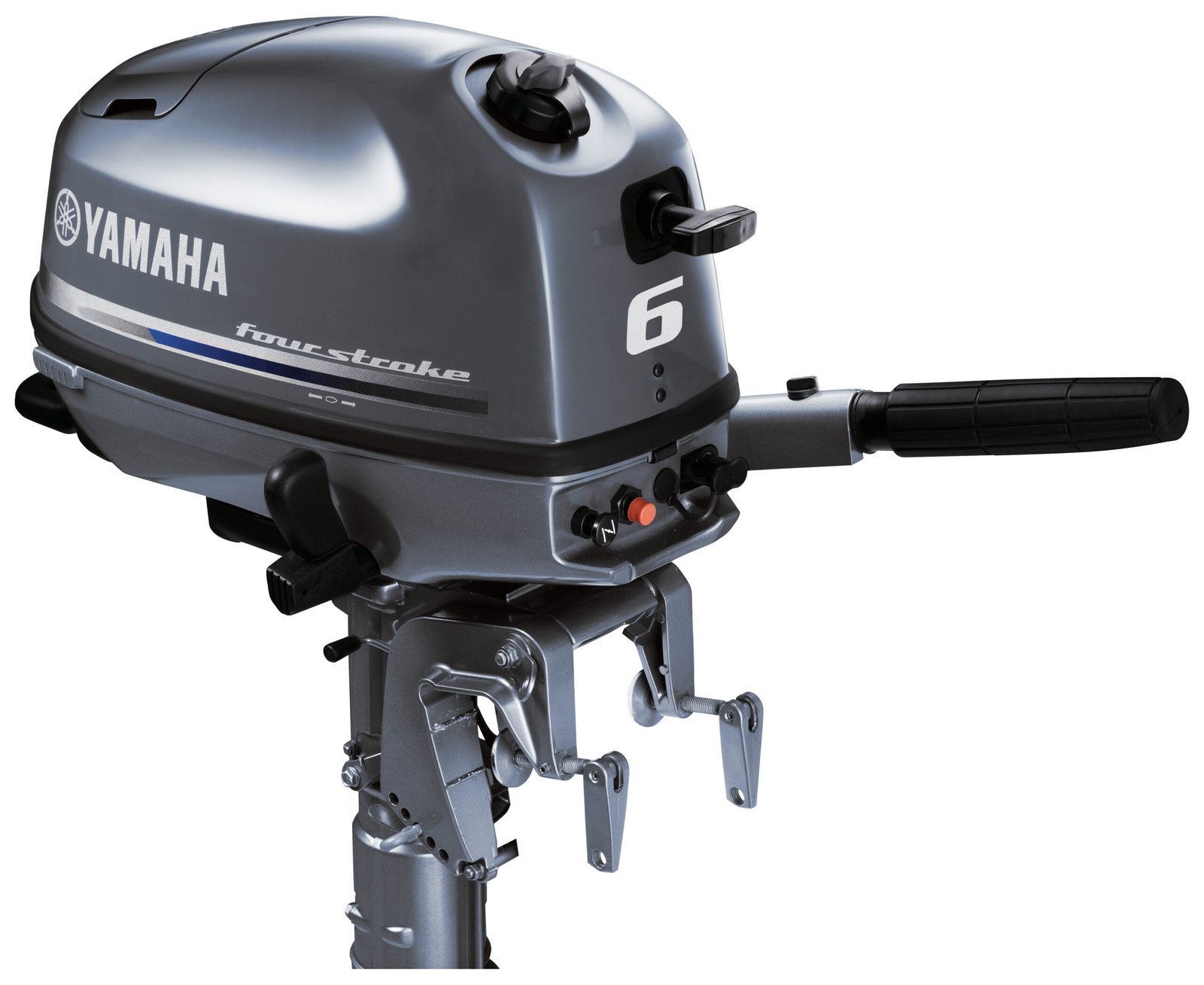

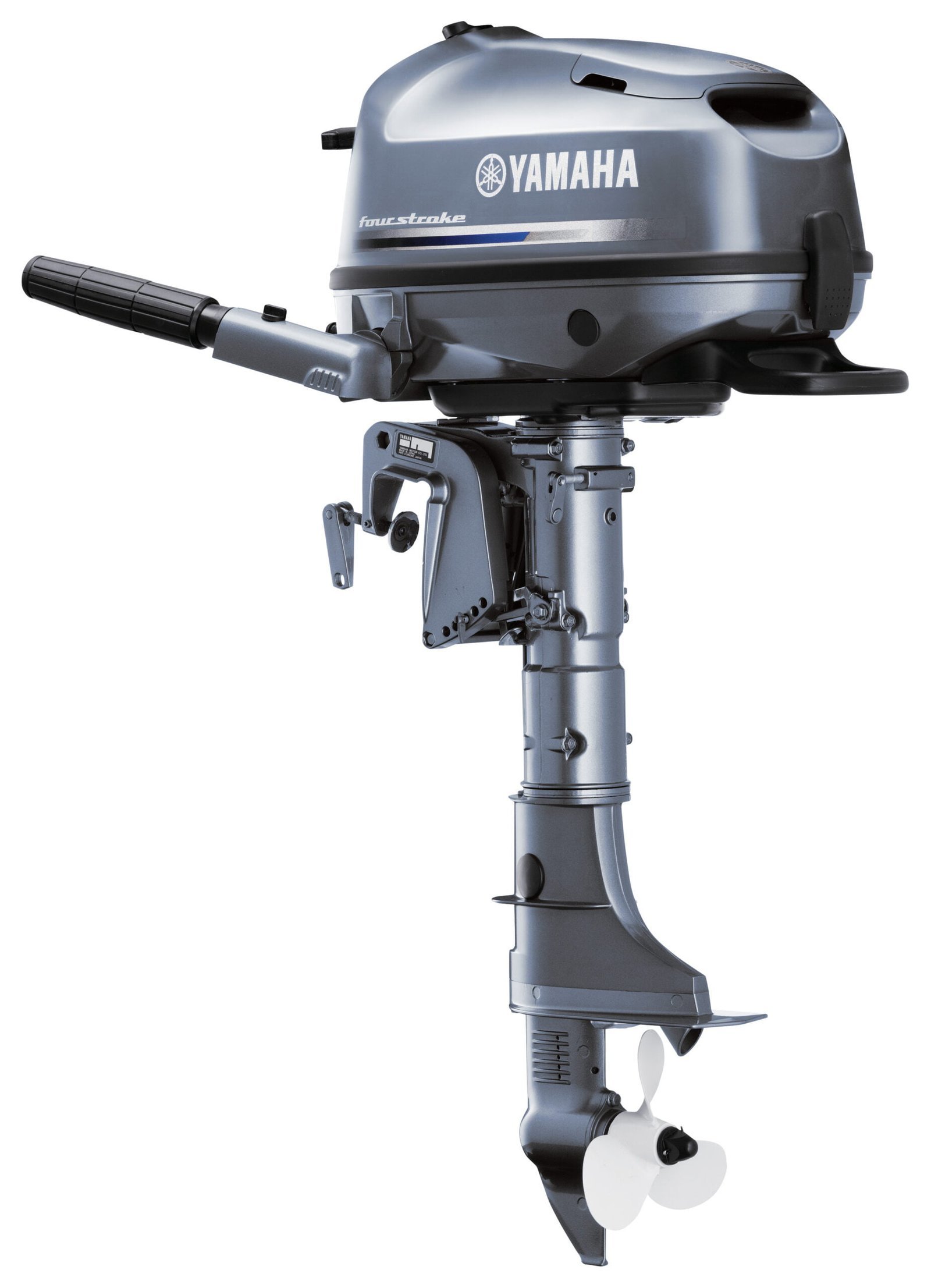

Yamaha 6HP Outboard 4 Stroke Short Shaft
The F6SMHA Yamaha 4 Stroke 6hp Short Shaft Portable Outboard is a compact and lightweight outboard motor designed for small boats and portable applications. It features a 4-stroke engine, which offers cleaner and quieter operation compared to 2-stroke motors. The 6hp power output provides sufficient power for maneuvering small boats and reaching moderate speeds.
With a short shaft length, this outboard is suitable for boats with a transom height of 15 inches or less. It is equipped with a convenient pull-start mechanism for easy ignition, as well as a twist grip throttle for precise control of engine speed.
General Features:
- 8.25P Alloy prop
- 1.1L Inbuilt fuel tank
- 5 position tilt
- 3-position shallow water drive
- Spline prop shaft
- Dual fuel line connection for optional remote tank
| Specifications | |
|---|---|
| Engine Type | OHV, 1-cylinder |
| Displacement | 139.0 cc |
| Bore x Stroke | 62 x 46 mm |
| Recommended Max RPM | 4500-5500 |
| Lubrication System | Wet sump |
| Fuel Management | Carb |
| Ignition | CDI |
| Starter System | Manual Choke |
| Alternator Output | 12V-6Amp with Rectifier Regulator (optional) |
| Operation Method | Tiller Handle |
| Trim & Tilt Method | Manual Tilt |
| Fuel Tank Capacity | 1.1 L |
| Gear Ratio | 2.08:1 |
| Previous model code(s) | F6CMHS |
| Dimensions | |
|---|---|
| Transom Length |
|
| Weight |
|
CDI-E: CDI-Electronic Automatic
CDI-M: CDI-Microcomputer
TCI: Transistor Controlled Ignition
